OPTICAL COMMUNICATION
Optical communication components—such as optical modules, fiber connectors, and transceivers—must maintain transmission quality and stability under diverse environmental stresses. These components are widely used in telecom base stations, data centers, aerospace, and 5G infrastructure, where they must endure heat, humidity, vibration, and contamination risks.
Products Tested

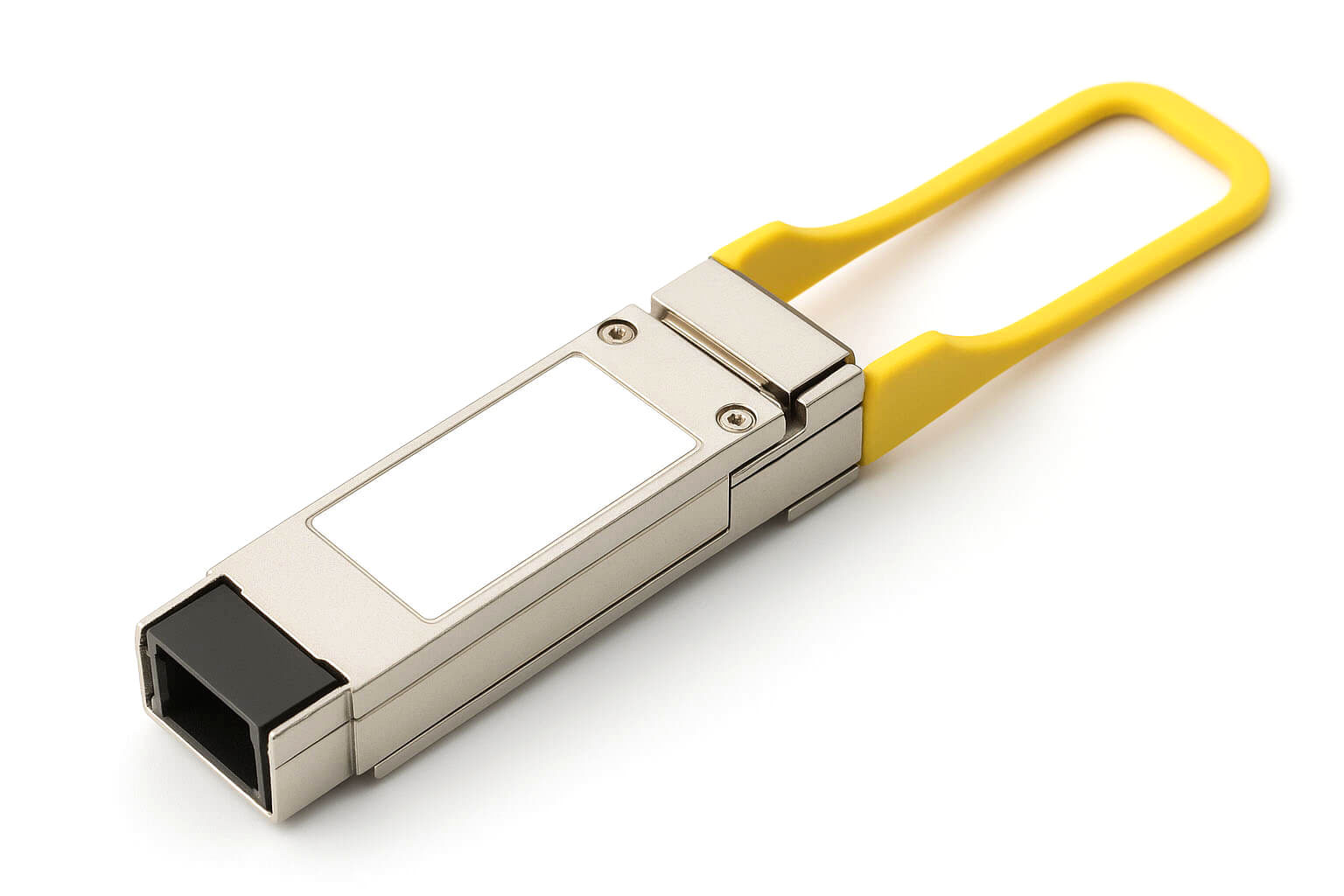

Optical transceivers

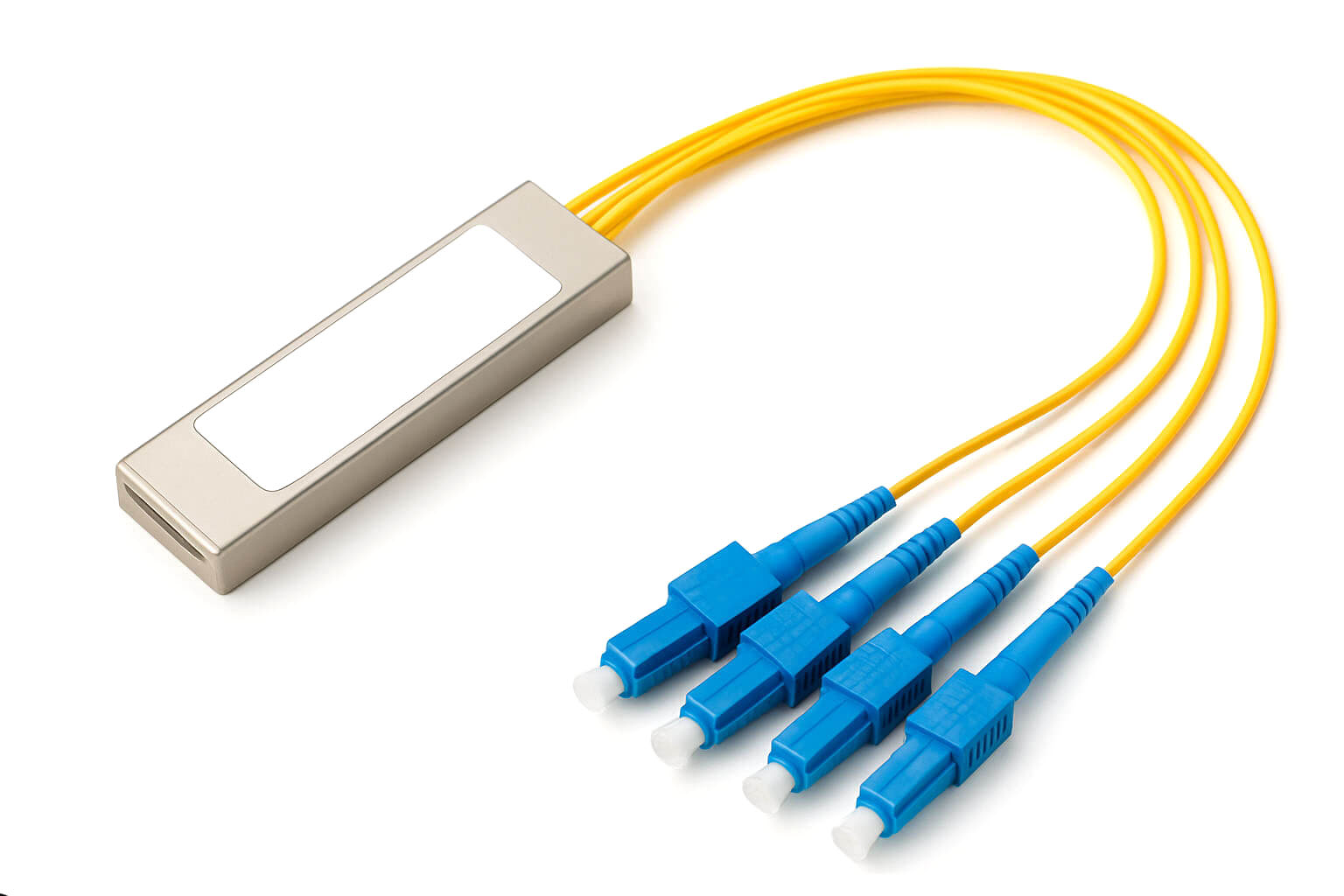

Splitter
Photodetector

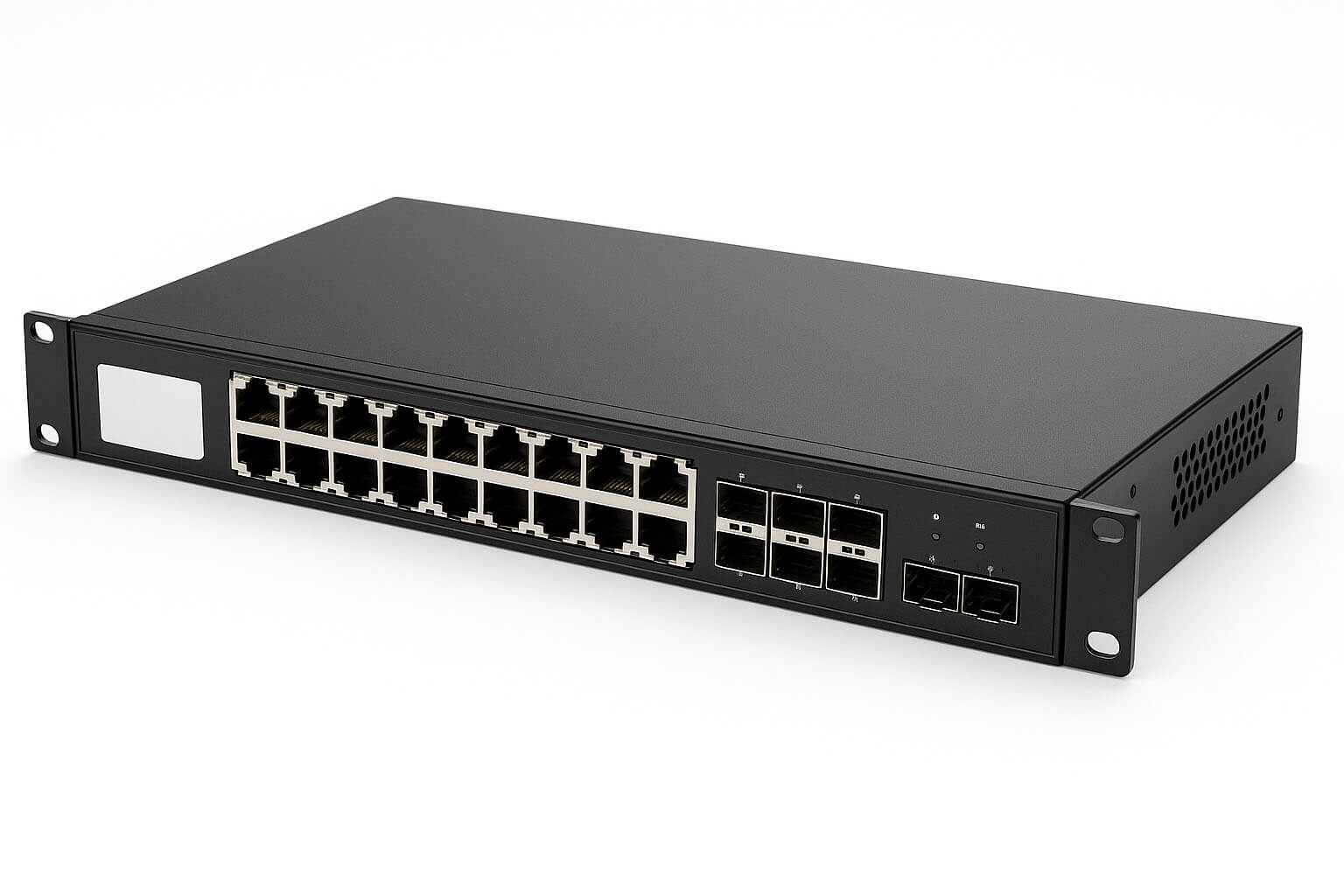

Ethernet Switch

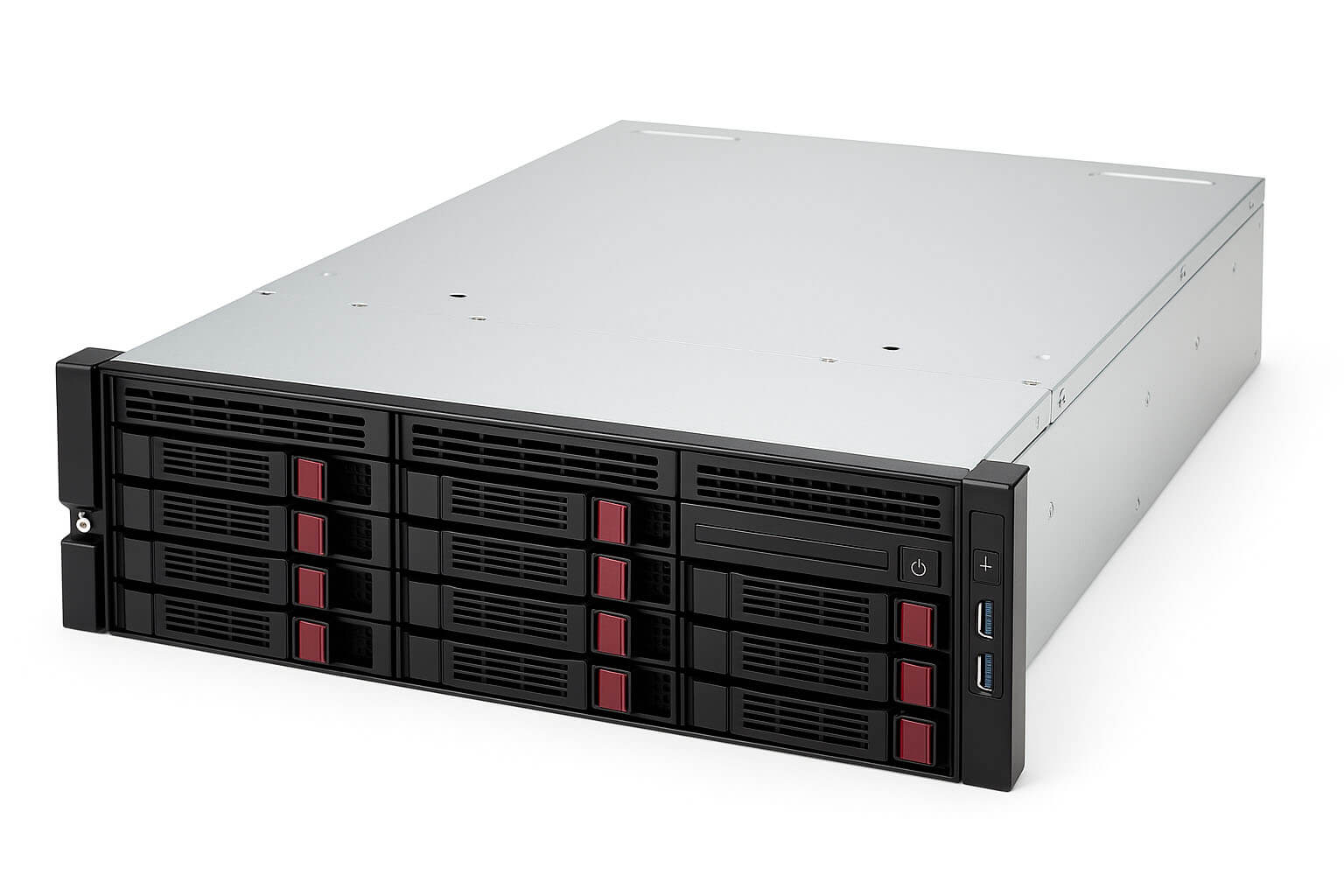

Data Center Server
Power supply
Testing Standards
Telcordia GR-468-CORE – Optoelectronic component reliability
IEC 61300-2 Series – Basic test procedures for fiber optic components
MIL-STD-810G/H – Environmental and mechanical simulation
ISO 9022 – Environmental testing of optical instruments
IEC 60068 – Basic environmental testing standards
Testing Conditions
High Temperature Aging: +60°C to +90°C, sustained exposure for 500–1000 hours
Low Temperature Exposure: -20°C to -40°C for cold-weather durability
Freeze-Thaw Cycling: -20°C ⇄ +20°C, 25–100 cycles to assess cracking and delamination
Humidity Testing: 25°C to 60°C / 85–95%RH, up to 1000 hours for mold and moisture resistance
Water Ingress / Rain Simulation: IPX4–IPX6 test conditions, up to 10 L/min per nozzle
UV Resistance: 280–400 nm spectrum, 0.7–1.4 W/m²/nm, up to 1000 hours (QUV equivalent)
Salt Spray / Fog Test: 35°C, 5% NaCl, 48–96 hours for coastal corrosion evaluation
Thermal Expansion Testing: Simulate differential heating to test joint integrity
